-OEW offers a range of Engine/ Air Driven Hydraulic Power Packs.
-Pumps are available in two stage models.
-All Pumps come equipped with Pressure Relief Valves for safety.
-Tank : Steel fabricated.
-All Tanks are electrostatic powder coated.
-All Power Pack components suitably fitted for out door duty.
-Extra Relief Valve provided in reservoir to prevent over loading.
-Return Line Filter provided in only Double Acting Cylinder type Power Packs.
-Standard supply with fixed frame mounted (2 fixed & 2 movable wheel can be provided on request).
-Other sizes (higher flow capacities) available on request.
Petrol Engine Driven Pack
FLOW AT RATED PRESSURE (1/min.) - 0.5, 1.0
MOTOR RATING (HP/kw) - 2.5/1.8,5.0/3.7

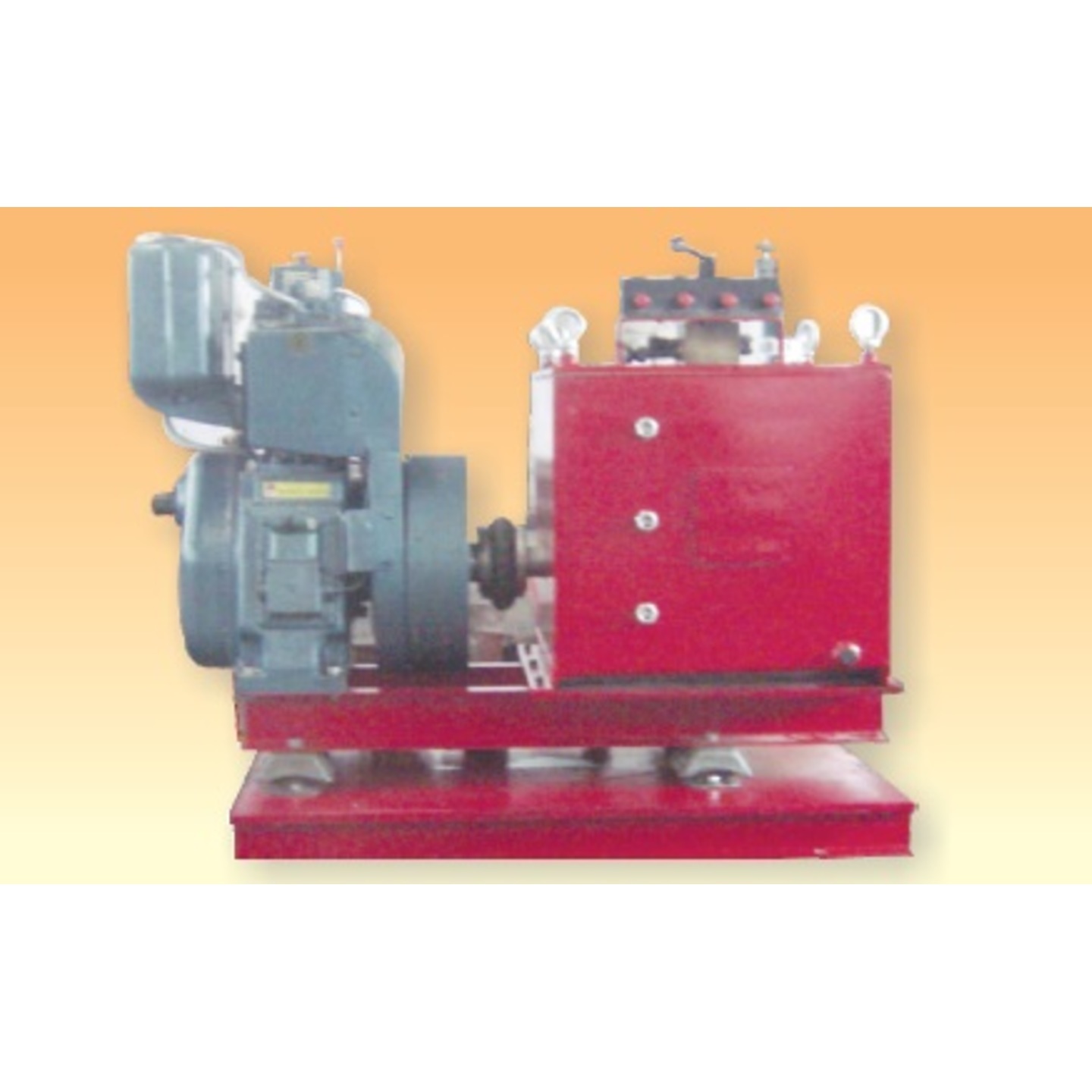

Diesel Engine Driven Pack
FLOW AT RATED PRESSURE (1/min.) - 2.6, 3.7
MOTOR RATING (HP/kw) - 6.0/4.4,8.0/5.9
Air Motor Driven Pack
FLOW AT RATED PRESSURE (1/min.) - 1.0
Air Pressure Range (bar) - 4-7
Air Consumption (1/min.) - 2200
